HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board

Name: HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board
Brand: HuaWei
Price: 1 USD

Cheap HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board for sale

Brand Name : HuaWei

Model Number : GPSF

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Product name : GPSF

Dimensions (W x D x H) : 23.30 mm * 257.90 mm * 399.20 mm

Power Consumption : Static: 25W; Maximum:50W

Optical Connector Type : SC/PC

Optical Fiber Type : Single-mode

Reach : 20.00 km

GPON Port : 16-GPON Port

Operating Wavelength : Tx: 1490 nm, Rx: 1310 nm

Contact Now

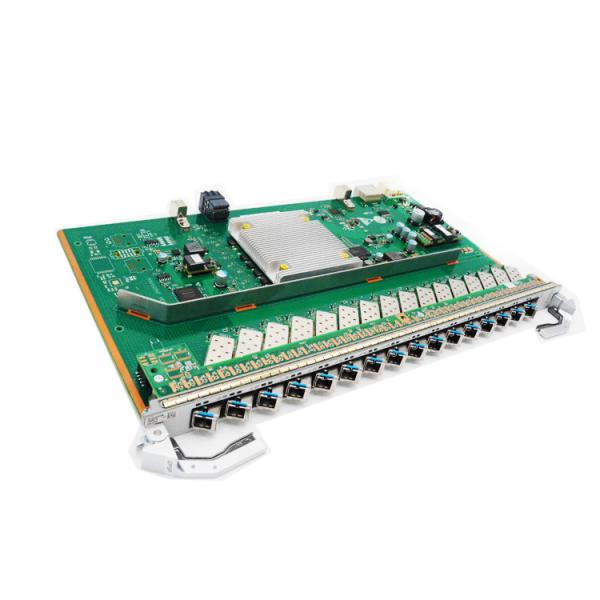

HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board

HuaWei MA5800 MA5800X2 GPON OLT board GPSF Interface Board fully equipped with 16-port module

Overviews of GPSF

GPSF is a 16 port GPON interface card of Huawei NG OLT, provides GPON service access from ONT. GPSF can maximum access 16*128 GPON subscribers.

* Huawei 16-GPON Port Interface Card with B+ SFP module

* Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system

* Support split ration 1:64

* Transmit Speed: 2.49Gbit/s, Receive Speed: 1.24Gbit/s

* Interface Type: SC/PC

* Max Transmit Distance: 20KM

* Transmit Wavelength: 1490nm, Receive Wavelength: 1310nm

* Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

* B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm

Tech Specs of GPSF


Specification
Service ports
GPON Port	16-GPON Port
GPON SFP Module Specification
Type	B+ Module : One-fiber bi-directional optical module, class B+
Operating Wavelength	Tx: 1490 nm, Rx: 1310 nm
Encapsulation Type	SFP
Port Rate	Tx: 2.49 Gbit/s, Rx: 1.24 Gbit/s
Minimun Output Optical Power	B+ Module : 1.50 dBm
Maximum Output Optical Power	B+ Module : 5.00 dBm
Maximum Receiver Sensitivity	B+ Module : -28.00 dBm
Optical Connector Type	SC/PC
Optical Fiber Type	Single-mode
Reach	20.00 km
Overload Optical Power	B+ Module : -8.0 dBm
Extinction Ratio	8.2 dB
Device Specifications
Dimensions (W x D x H)	23.30 mm * 257.90 mm * 399.20 mm
Power Consumption and Maximum Frame Size
Power Consumption	Static: 25W; Maximum:50W
Maximum Frame Size	2004 bytes 9216 bytes (jumbo frame enabled)
Operating temperature	-40°C to +65°C

HuaWei MA5800 MA5800X2 GPON OLT Board GPSF Interface Board

Q&A

Q: What's the difference among H901GPHF, H901GPSF, H805GPFD?

	H901GPHF	H901GPSF	H805GPFD
Port	16 GPON ports with SFP optical modules	16 GPON ports with SFP optical modules	16 GPON ports with SFP optical modules
Max. split radio	Class B+: 1:64 Class C+/C++: 1:128	Class B+: 1:64 Class C+/C++: 1:128	Class B+: 1:64 Class C+/C++: 1:128
Function
Forwarding capability	40 Gbit/s	40 Gbit/s	40 Gbit/s
T-CONTs per PON port	1024	1024	1K
Service flows per PON board	16384	16384	16K
Maximum frame size	2004 bytes 9216 bytes(jumbo frame enabled)	2004 bytes	2004 bytes 9216 bytes(jumbo frame enabled)
Maximum number of MAC addresses	131072	16384	64K
Maximum distance difference between two ONUs under the same PON port	40 km	40 km	40 km from V800R013
FEC	Bidirection	Bidirection	Bidirection
CAR group	Supported	Supported	Supported
Queue scheduling hierarchy	4-level HQoS	2-hierarchical HQoS	4-level HQoS
IPv6			Supported
Variable-length OMCI	Supported	Supported	Supported from V800R013
ONU-based shaping or queue-based shaping	Supported	Supported	Supported
Load sharing	Supported	Supported	Supported
High-precision clock time synchronization			Supported
Type B protection (dual-homing)	Supported	Not supported
Type B Protection (single-homing)/ Type C	Supported	Supported
Type B/Type C protection			Supported
1588v2	Supported	Not supported
Rogue ONU detection and isolation	Supported	Supported	Supported
Automatic shutdown at high temperature	Supported	Supported	Supported
Automatic shutdown of an idle port	Supported	Supported	Supported
D-CCAP networking	Supported	Supported
1:64 eOTDR	Supported (with FBG)	Supported (with FBG)	Supported
Environment
Operating temperature	-40°C to +65°C	-40°C to +65°C	-25°C to +65°C
Power consumption	Static: 25 W Maximum: 50 W	Static: 25 W Maximum: 50 W	Static: 26 W Maximum: 50 W

Q: When deploying GPON network, what are the differences between GPSF and GPHF?

A: GPSF only can supports FTTH, while GPHF supports FTTH, FTTO, FTTM and D-CCAP.
